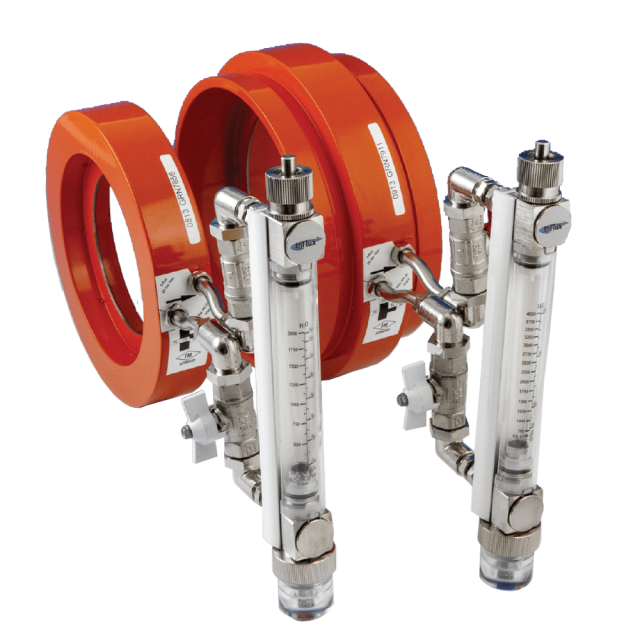

Firesure FM and LPC Type Flowmeters
| TECHNICAL DATA | ||||||||
| Pipe OD | Nominal | Meter Code | Flow Test Ranges | Pump Duty | LPC Approval Ref. | FM Approval Ref. FS | ||
| mm | mm | Inches | LPCB
dm3 / min |
FM
US GPM |
US GPM | |||
| 60.3 | 50 | 2 | LF100* | 150 -700 | 100 | 464a/01 | ||
| 88.9 | 80 | 3 | DUO F200 | 300 – 1600 | 100 – 400 | 150; 200 | 464a/02 | 80FLFM |
| 114.3 | 100 | 4 | DUO F450 | 500 – 3500 | 150 – 900 | 250; 300; 450 | 464a/03 | 100FLFM |
| 165.1 / 168.3 | 150 | 6 | DUO F1000 | 900 – 7900 | 250 – 2000 | 500; 750; 1000 | 464a/04 | 150FLFM |
| 219.1 | 200 | 8 | DUO F2000 | 2000 – 15000 | 750 – 4000 | 1250; 1500; 2000 | 464a/05 | 200FLFM |
