Description Latching Solenoid is utilized to open a Schrader valve on the top fitting connector of the cylinder valve. The application gives an answer to a quick reaction and a high latching power to be utilized with the UNIQUE Fire Extinguishing Liquid Agent. It was resolved that a latching solenoid with a discretionary nearby manual control head is the best answer for the application. The actuator is held in the latching position without power until a flag from the operator discharge control board removes the permanent magnet. Whenever discharge, the latching solenoid opens the cylinder valve enabling the quenching medium to release from the cylinder into the system. The latching solenoid is designed with an emergency release local manual control to manually force the pin to depress the cylinder valve to release the extinguishing medium when needed. In order to reset the system, the solenoid is to be manually returned to the latched position. This custom latching solenoid designed specifically for fire protection systems is UL listed and tested in accordance with UL508. Features

High latching forces
Fast response
Options
- Manual release button cap
- Reset tool
UL approval-recognized to UL864
Tested in accordance with UL508

Specification

Manual actuation force : 12-40lb ƒ (5.44 – 18kgƒ) max
Operating force : 20.25 – 14.6lbƒ (90 – 65 N) min
Power requirement : 24 VDC
Current : 0.5A @ 24 VDC
Electrical Connection : DIN 43 650-A / ISO 440 3 pin
Operating Temperature Range : -4 to 131°F (-20 to 55°C)
Weight : 1.9lbs (.86kg)
Dimensions
- Body Diameter : 1.61 in (41 mm)
- Length : 4.17 or 5.9 in (106 or 150 mm) with manual actuation cap

Part Number	Description	Electrical Rating
UFI 50026-A	Latching Solenoid	24 VDC

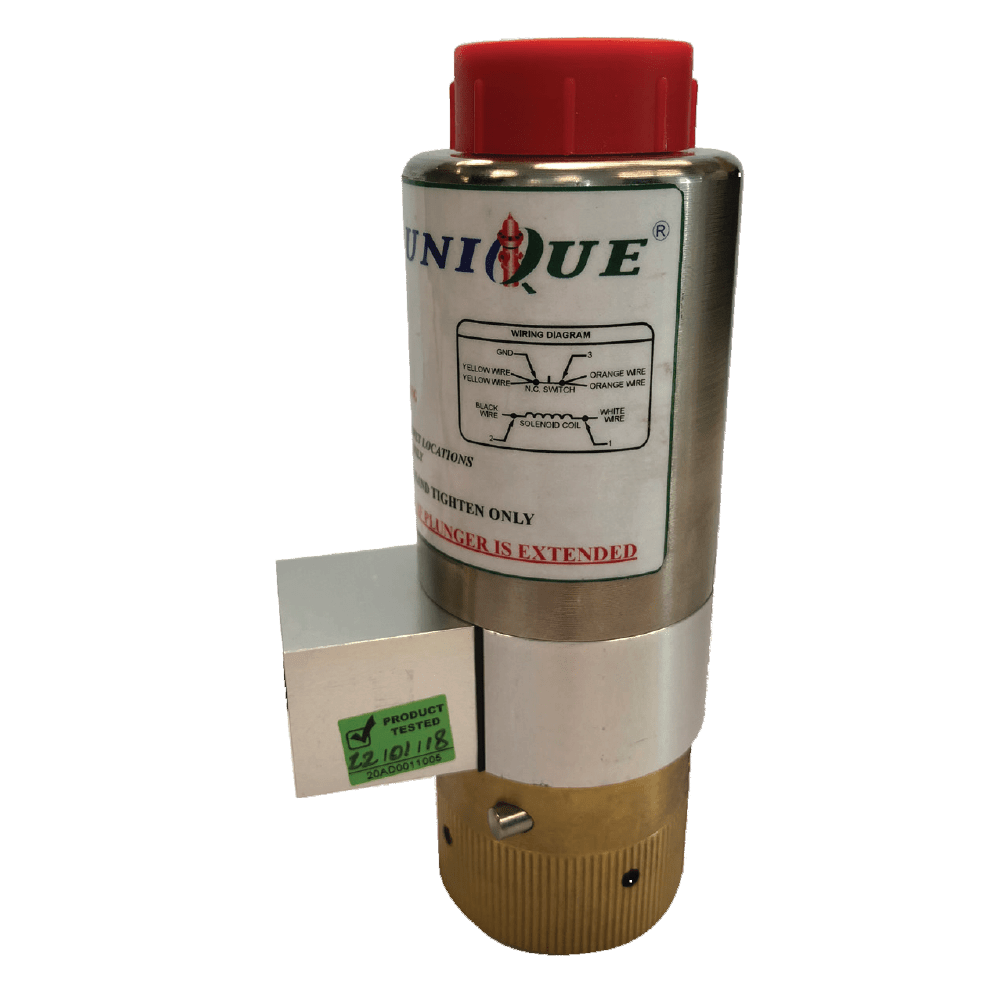

Latching Solenoid
