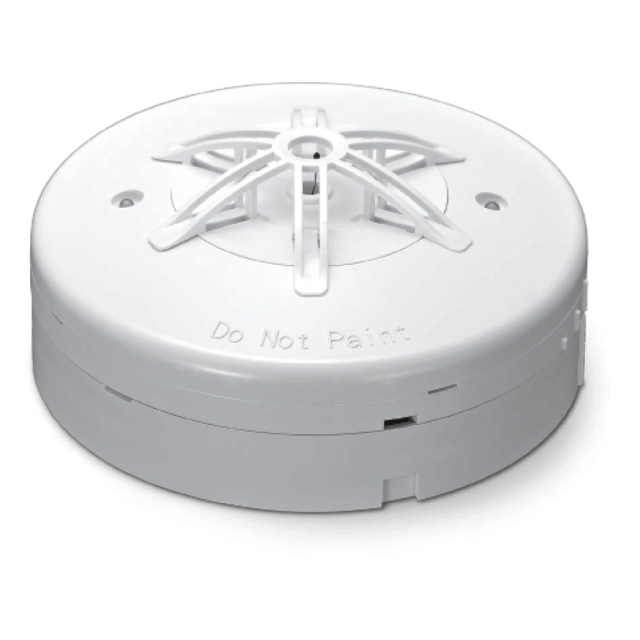

UNIQUE AH-0626 Heat Detector
| TECHNICAL DATA | ||||
| Model | AH-0626-2 | AH-0626-3 | AH-0626-4 | |
| Alarm Contact | N/A | N/A | 0.8A @ 30V DC
0.4A @ 125V AC |
|
| Voltage Range | 12 ~ 30V DC | |||
| Alarm Current @ 24 V DC 470Ω | 40mA | 40mA | 45mA | |
| Standby Current @ 24 V DC 470Ω | 70µA | |||
| Thermal Setting | 60°C | |||
| Ambient Temperature | 0°C ~ +37.8°C | |||
| Material | Fire-proof plastic | |||
| Dimensions | 102mm (Dia.) x 46mm(H) | |||
| Weight | 120g | 120g | 130g | |
| Color | White | |||
| ORDER INFORMATION | ||||
| AH-0626-2 | 2-wire | |||
| AH-0626-3 | 3-wire with remote indicator input | |||
| AH-0626-4 | 4-wire with relay output | |||
| EFFECTIVE ALERT AREA | ||||
| Construction / Height | Under 4M | 4M ~ 8M | ||
| Fire-proof Building | 90m2 | 45m2 | ||
| Ordinary Building | 50m2 | 30m2 | ||
