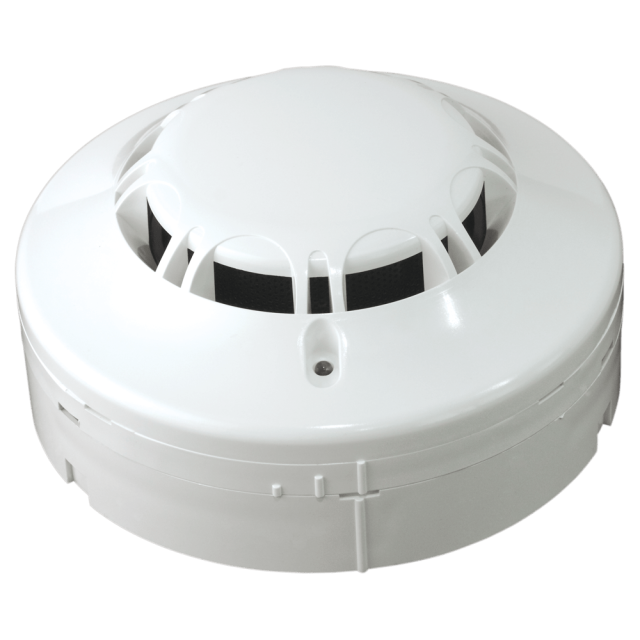

UNIQUE AH-0711 Photoelectric Smoke Detector
| TECHNICAL DATA | ||
| Model No. | AH-0711 | |
| Part No. | FAE-P0711 | |
| Description | 2 Wire | |
| Alarm Current @ 24V DC 470 Ω | 40mA | |
| Operating Temperature Range | -10°C to 55°C | |
| Operating Humidity Range | 10% to 93% Relative Humidity | |
| Voltage Range | 12V-30V DC | |
| Standby Current | 25 – 75 μA | |
| Sensitivity Setting | Complies with UL 268 | |
| Material | Fire- proof plastic | |
| Size | Ø102mm x 47mm (H) | |
| Weight | 130g | |
| Colour | White | |
| EFFECTIVE ALERT AREA | ||
| Building Height | Under 4m | 4m to 20m |
| Area Covered | 150m2 | 75 m2 |
