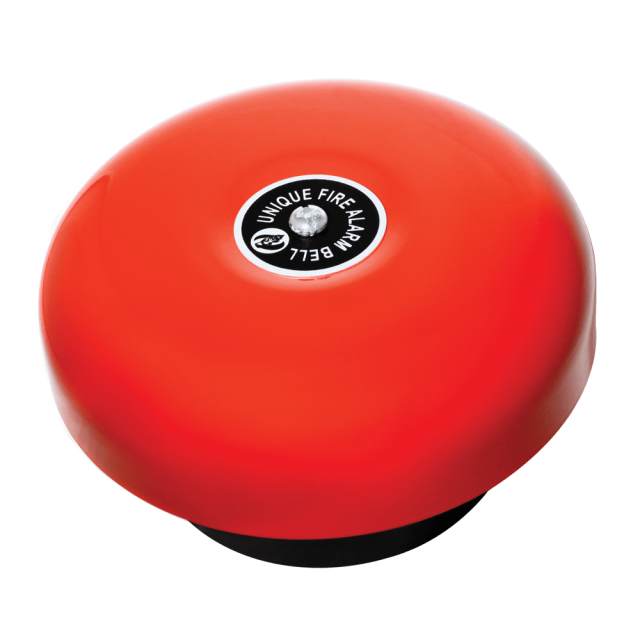

UNIQUE Fire Alarm Bell
| TECHNICAL DATA | ||||
| Model No. | UNI-102 | |||
| Part No. | FAE-6AB | |||
| Supply Voltage | 110/ 240V (AC) | |||
| 12/24V (DC) | ||||
| Sound Output | 92 – 105 dB | |||
| Current Consumption | 0.05 A | |||
| Size | 150mm (6”) | |||
| Finishing | Red | |||
| DECIBEL SPECIFICATION | ||||
| AC Type | Decibel Rating @ 1m (3ft) | |||
| Voltage | Amps | 100mm (4”) | 150mm (6”) | 200mm (8”) |
| 110 | 0.015 | 92dB | 95dB | 97dB |
| 240 | 0.033 | 98dB | 105dB | 106dB |
| DC Type | Decibel Rating @ 1m (3ft) | |||
| 12 | 0.08 | 95dB | 99dB | 100dB |
| 24 | 0.05 | 96dB | 103dB | 105dB |
