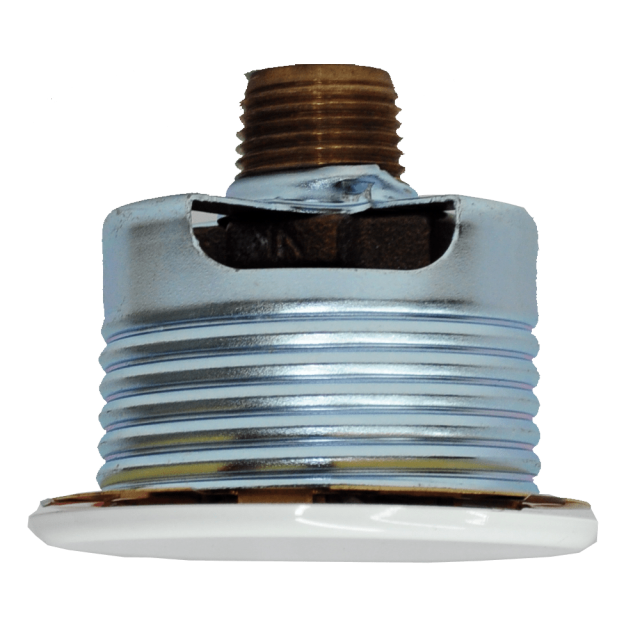

VIKING Concealed Pendent Sprinkler
| TECHNICAL DATA | ||
| Part No. | SHV-CCH20034AB-SR-68C-15
(Concealed Pendent) |
Standard Response |
| SHV-CCF-13504-57W-15
(White Cover Plate) |
||
| SHV-CCH13503-68C-15 (Concealed Pendent) | Quick Response | |
| SHV-CCF-13504-57W-15 (White Cover Plate) | ||
| SIN | VK492 (Standard Response) – UL Listed and FM Approved | |
| VK462 (Quick Response) – UL Listed | ||
| Size (NPT) | 15mm (½”) | |
| Type | Standard Response | |
| Bulb | 5mm (Standard Response)
3mm (Quick Response) |
|
| Activation Temperature | 68°C | |
| K-Factor | 5.6 (80.6) | |
| Finishing | Sprinkler – Brass
Cover Plate – White |
|
| Maximum Working Pressure | 12 bar (175 psi) | |
